Professional Turning-Milling Composite CNC Machine Tools Manufacturer

While other companies spread their focus thin, we choose deep specialisation. Precisely because we dedicate ourselves solely to turning-milling composite machining, we can offer you more expert knowledge, more reliable equipment, and more effective end results. Choosing us means choosing a true expert partner.

● Dual-Spindle
● High Rigidity
● Turn-Mill Integration
● Precision Machining
● MOQ: 1 Machine

Get A Free Quote

CKX Series Customizable Dual-Spindle Turning & Milling Machine

CKX Series Dual-Spindle Turning & Milling Machine

The CKX series is designed for complex tubular workpieces and high-precision turn-mill composite machining applications.

Built with high-power mechanical spindles, rigid guideways, and Y-axis machining capability, it provides stable and efficient multi-process machining performance.


Key Features:
•Dual-spindle integrated machining
•High-rigidity machine structure
•Y-axis milling capability
•Heavy-duty hard rail design
•High machining accuracy and stability
•Suitable for complex turning and milling operations


Machining Advantages:
•Reduced re-clamping errors
•Improved concentricity and positioning accuracy
•Higher machining efficiency
•Stable performance for long tubular parts
•Suitable for multi-process integrated machining


Applications:
•Tubular workpieces
•Precision industrial components
•Automotive parts
•Aerospace components
•Complex shaft and pipe machining

Inquire Now

CKX Dual-Spindle Turn-Mill Machining Center

Derived from the mature R&D technology and manufacturing capabilities of slant-turning machines, the CKX550-CYS and CKX750-CYS models were specifically developed for complex tubular workpieces. Based on high-power mechanical spindles and robust hard guides, combined with a high-performance Y-axis, they provide you with high-efficiency, all-around high-rigidity spindle processing capabilities. Strong and powerful, they are among the most cost-effective machines in their class, fully meeting your various processing needs today and in the future.

Inquire Now

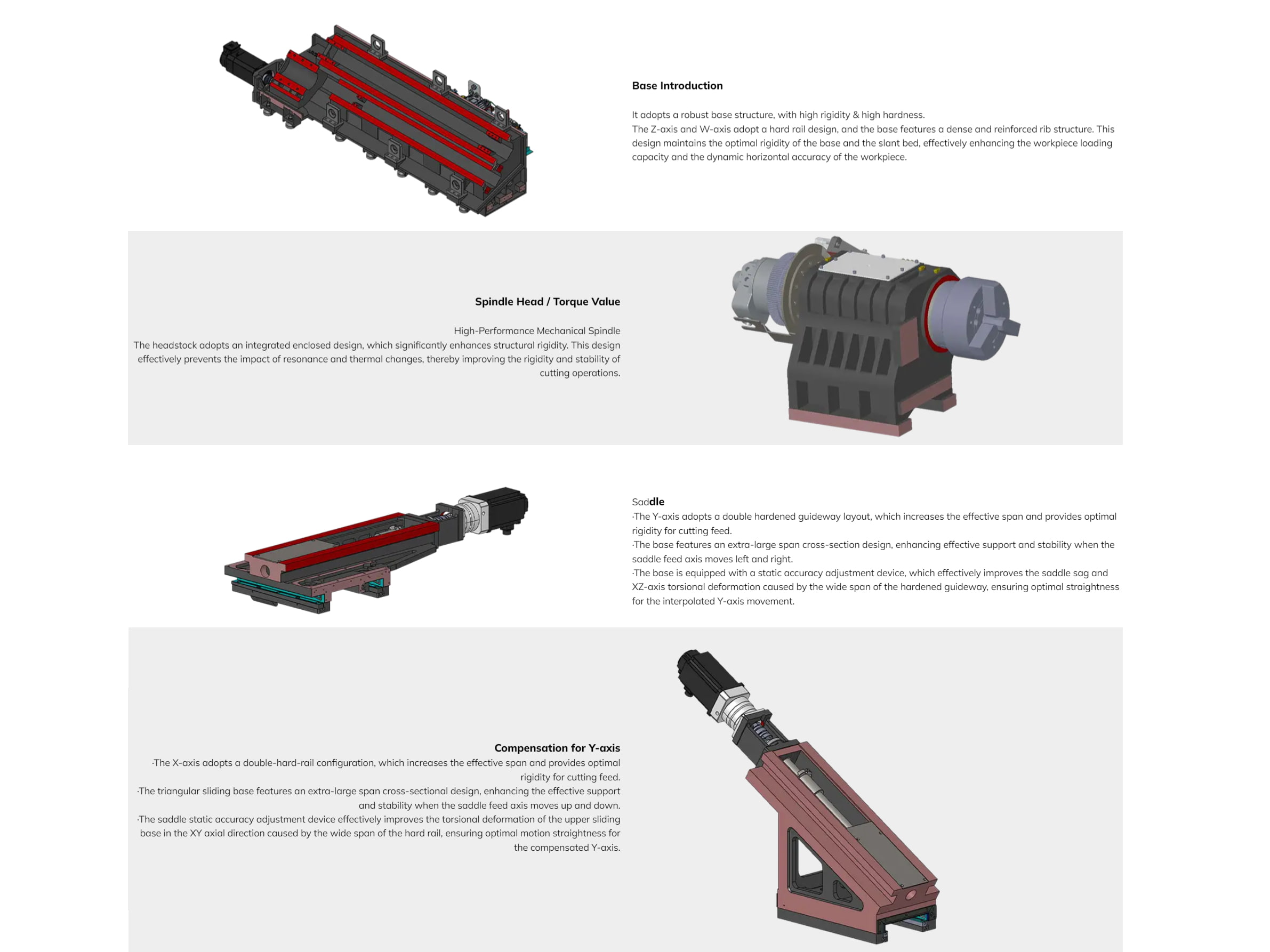

Base Introduction:

Robust base with high rigidity. Z/W axes use hard rail + reinforced ribs for optimal rigidity, loading capacity, and dynamic accuracy.

Spindle Head:

Enclosed headstock enhances rigidity, prevents resonance/thermal effects, improves cutting stability.

Saddle

Y-axis: double hard guideway, large span. Extra-large base cross-section. Static adjuster reduces sag and torsion, ensuring Y-axis straightness.

Compensation for Y-axis

X-axis: double hard rail, large span. Triangular base with large-span section. Static adjuster reduces XY torsion for compensated Y-axis straightness.

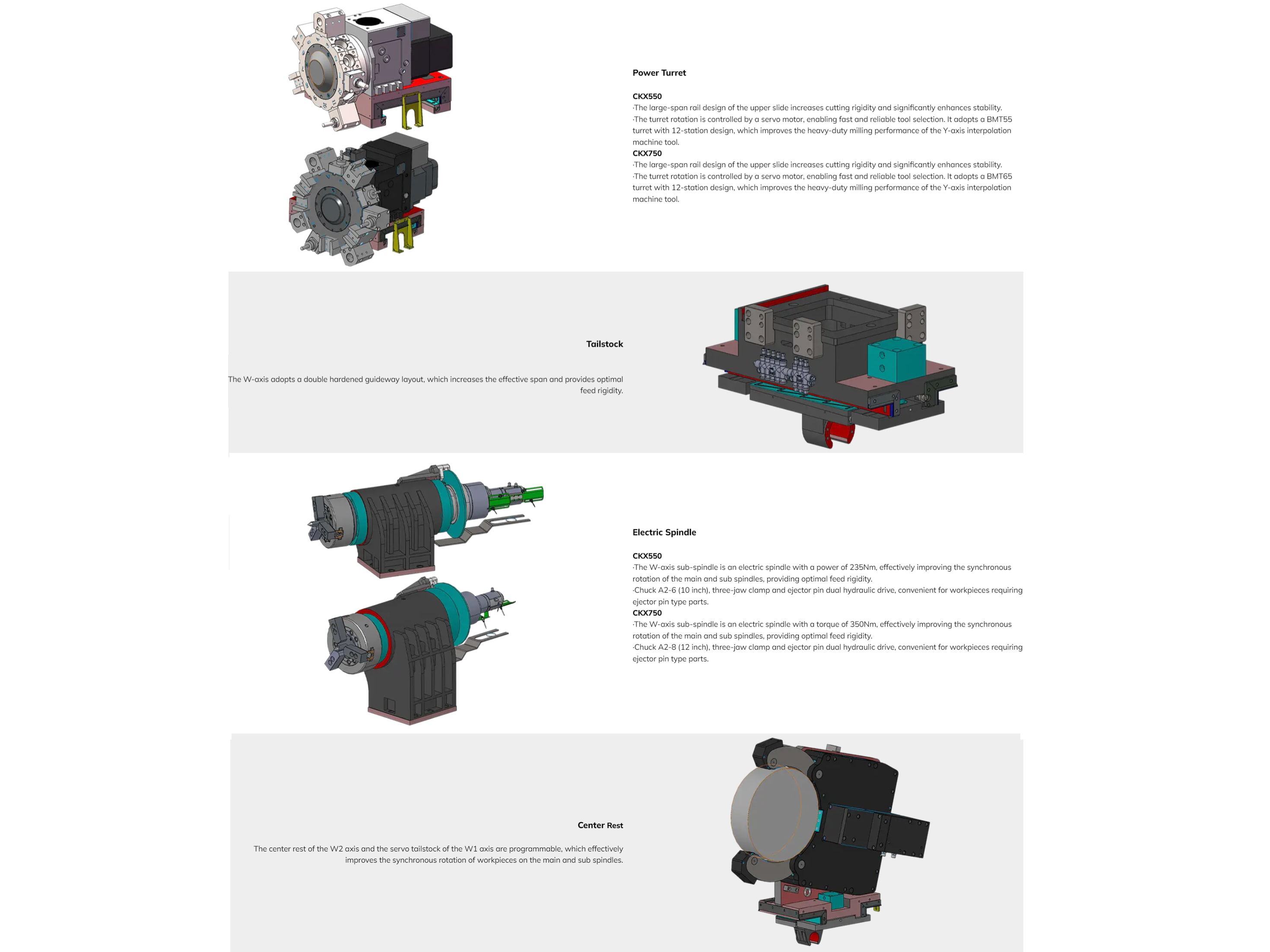

Power Turret

CKX550: BMT55, 12-station, servo-driven. Large-span rail for rigidity & stability; improves Y-axis milling.

CKX750: BMT65, 12-station, servo-driven. Large-span rail for rigidity & stability; improves Y-axis milling.

Tailstock

W-axis: double hard guideway, large span for feed rigidity.

Electric Spindle

CKX550: 235Nm, A2-6 (10"), dual hydraulic drive.

CKX750: 350Nm, A2-8 (12"), dual hydraulic drive.

Center Rest

W2 center rest & W1 servo tailstock are programmable, improving main/sub-spindle workpiece sync.

Customize First Machine

  • Standard dual-spindle turning and milling machines designed for efficient precision machining applications.

    Get In Touch

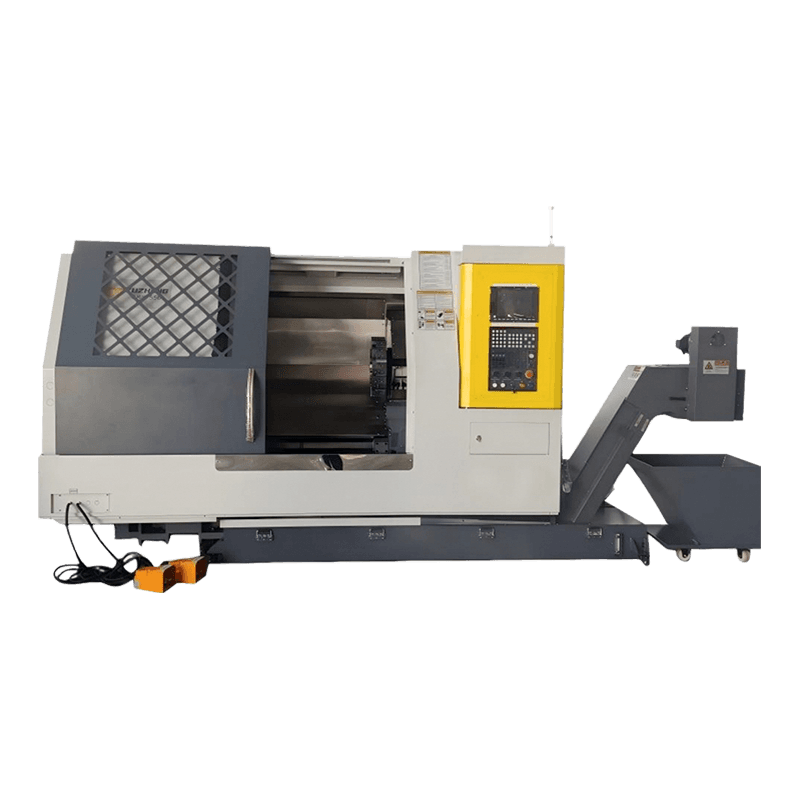

    CKD Series-Standard Model Dual-Spindle Turning and Milling Machine

  • Get In Touch

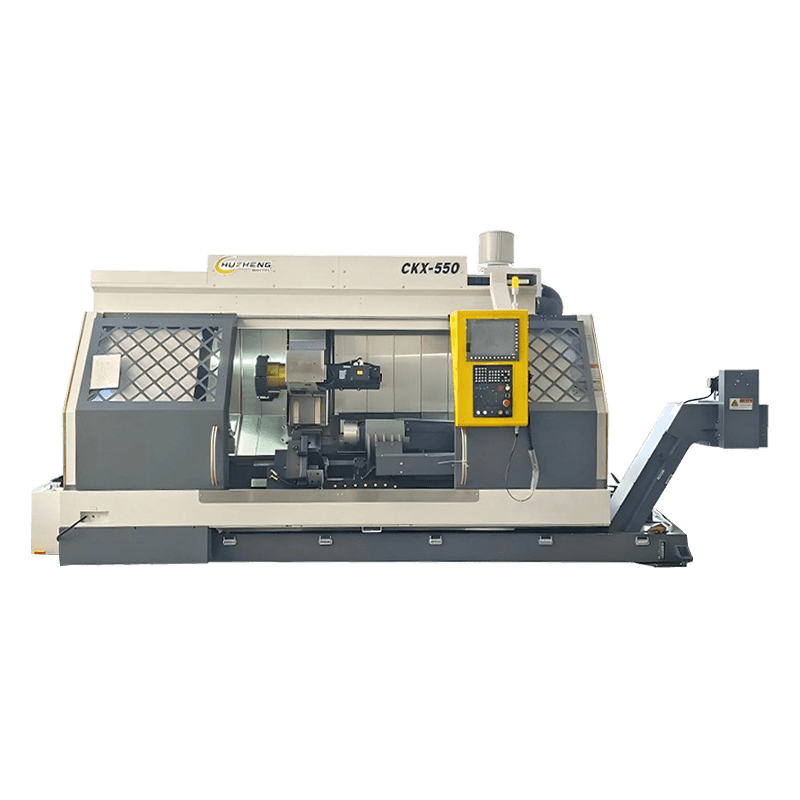

    CKX Series -Customizable Dual-Spindle Turning and Milling Machine

  • Heavy-duty dual-spindle turning and milling machines for large workpieces and demanding machining conditions.

    Get In Touch

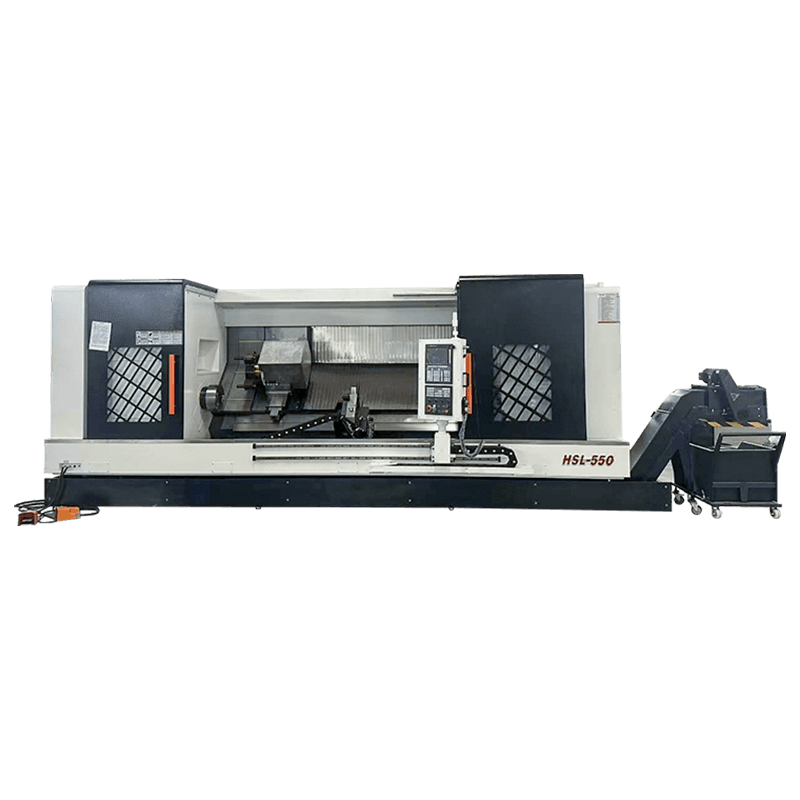

    HSL Series - Heavy-Duty Dual-Spindle Turning and Milling Machine
Industries We Serve
Our machines are the ideal solution for complex, high-tolerance parts where turning is dominant and milling is critical.
APPLICATIONS
  • Automotive industry
  • Aerospace industry
  • Precision machinery
  • Energy equipment
  • Industrial component manufacturing

Our Story

A Decade of Insight Before the First Machine

Xuancheng Huzheng Machinery Trading Co., Ltd. – an integrated manufacturer of R&D, production, and sales.

Our Jiangsu headquarters is located in Xueyan Town, Changzhou, on the scenic shores of Lake Taihu, with convenient transportation. Equipped with advanced machining facilities (CNC gantry machining centers, surface grinders, guideway grinders), we maintain strict quality control from casting to after-sales support. Our machine tools are recognized for innovative design, reliable performance, high precision, excellent cost-effectiveness, and comprehensive service.

Guided by “Innovation, Quality, Efficiency, Service,” we are committed to delivering superior products and outstanding service. We look forward to collaborating with partners worldwide to build a bright future together.

Contact Us
  • 12000 +

    Factory area

  • 2015

    Establish In

  • 500 +

    Number of employees

The Specialist Advantage

Deeper R&D: All resources are dedicated to turning-milling composite technology, enabling faster iterations and cutting-edge advancements.



Greater Process Expertise: As specialists in this field, our engineers bring deep mastery of turning-milling processes, offering highly refined process planning support.



More Reliable Products: Focusing on a single product line means all quality control and improvements are concentrated here, resulting in lower failure rates and greater maturity.



Swifter Service Response: Spare parts inventory and technical support teams are dedicated solely to one machine type, enabling faster response times and quicker issue resolution.
